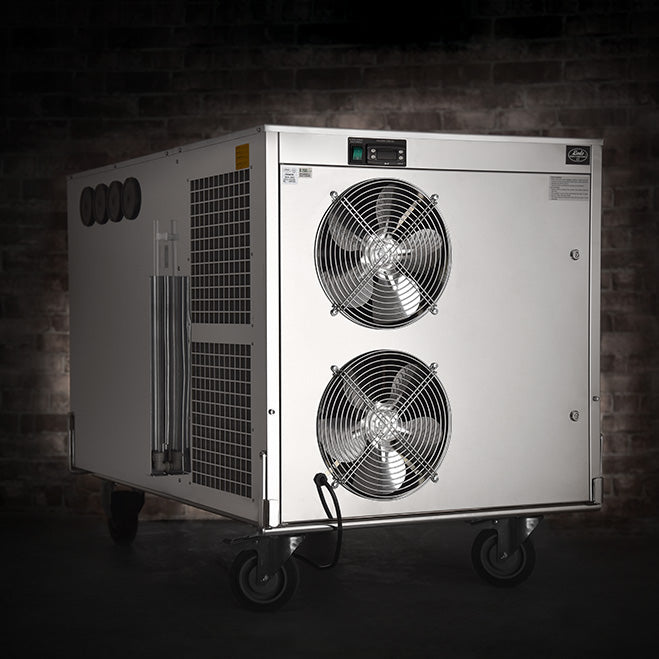

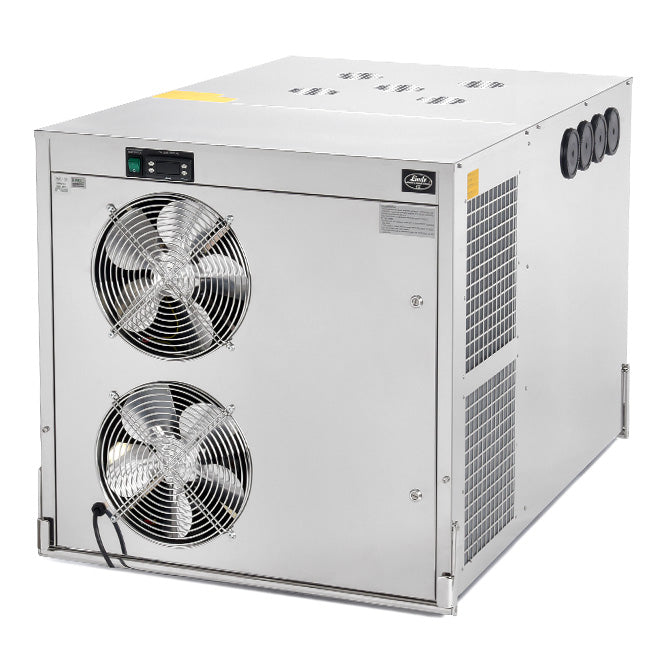

Lindr AS-450 Ultimate Green Line Cooling System
The Lindr AS-450 Unlimited Green Line was developed with a vision of unlimited possibilities – hence the name "Unlimited." With a maximum cooling capacity of 450 liters per hour and an output of 4000 W, this unit delivers top performance even under the most demanding conditions.
At the heart of the system is a modern two-circuit compressor cooling unit combined with a large 144-liter water tank, enabling the accumulation of up to 90 kg of ice. This ensures a highly stable and efficient cooling process.
The AS-450 can be flexibly configured:
As a traditional beverage cooler with capacity for up to 16 cooling coils.
As a multifunctional cooling unit with the option for up to five outlets by integrating up to four additional pumps.
With a third cooling circuit and glycol tank, which can be adjusted down to –10 °C for long-term cooling or use in advanced python systems.
The unit comes standard with an NRG 12 circulation pump (12 m lift height) and can be equipped with additional pumps or customized as needed. With industrial wheels, stainless steel construction, digital thermostat, and user-friendly design for service and maintenance, the AS-450 is a robust and reliable choice.
The Green Line technology with environmentally friendly refrigerant R-290 provides up to 20% lower power consumption and higher energy efficiency, while production is based on energy-saving systems and recyclable materials.
Specifications
- Compressor power: 2 × 3/4 HP (2 × 2000 W)
- Max. cooling capacity: 450 l/h (to 0 °C / TK 45 °C)
- Continuous performance: 380 l/h
- Thermal gradient ΔT: 10 °C
- Water tank: 144 liters
- Ice bank: 90 kg
- Circulation pump: NRG 12, lift height 12 m
- Recirculation connection: 1/2"
- Number of cooled beverages: Variable, up to 16
- Length of cooling coils: Variable (4 pcs: 2 × 10 m, 2 × 14 m)
- Diameter of cooling coils: Variable (7 × 8 mm, 9 × 10 mm)
- Power: 1380 W
- Current consumption: 6 A
- Voltage: 220–240 V / 50 Hz ~1
- Refrigerant: R-290 (environmentally friendly)
- Digital thermostat: Yes
- Industrial wheels: Yes
- Power cable with plug: Yes
- Weight (net): 120 kg
Customization options:
- Up to four additional pumps (max. five outlets total)
- Option for third cooling circuit with glycol tank (down to –10 °C)
- Selectable cooling coils and configuration as needed
- Illuminated water level indicator with drain
Technical support for Lindr
Brewshop is the Norwegian distributor for Lindr, and with us, you are guaranteed fast and excellent service. We also assist with proposing equipment you need for tapping from KeyKeg, PolyKeg, or other kegs. Feel free to contact us.
