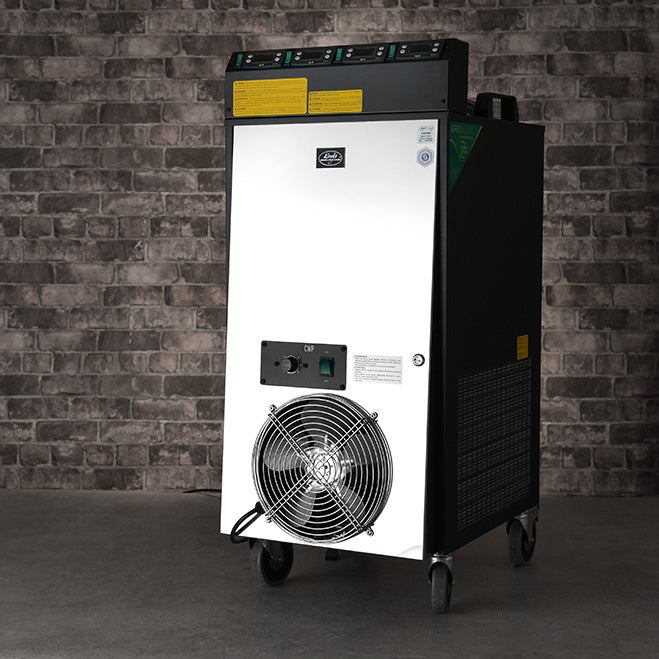

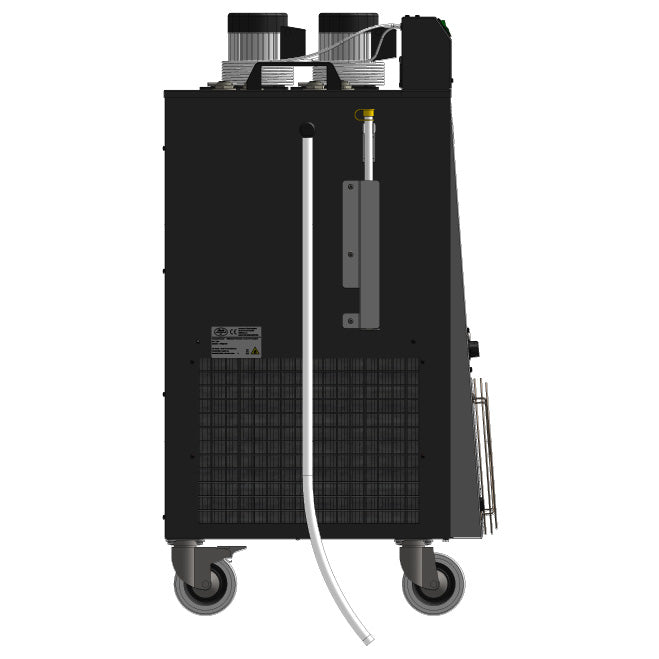

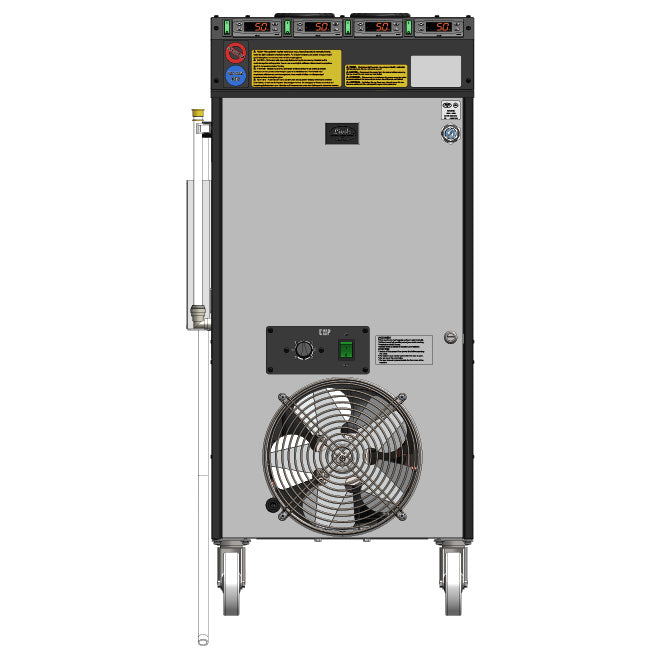

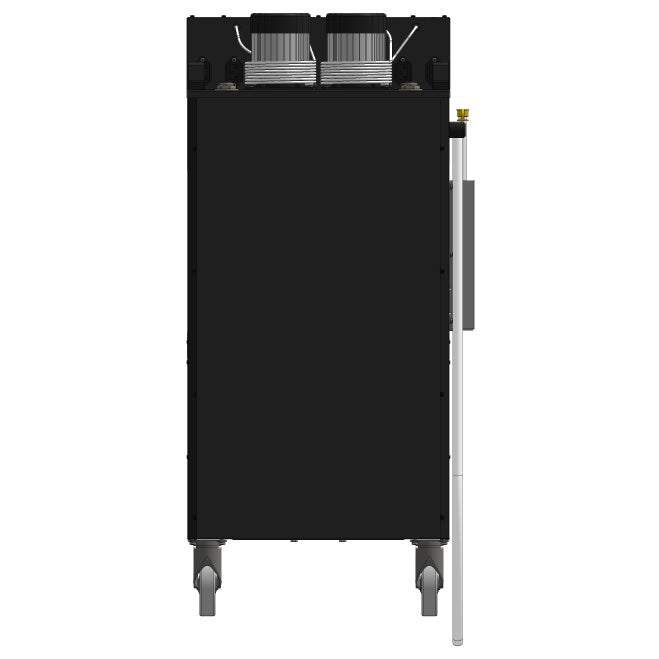

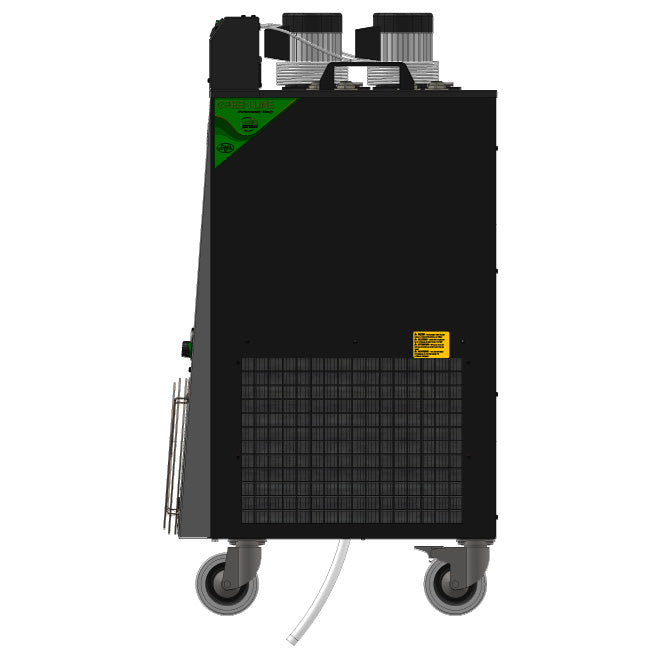

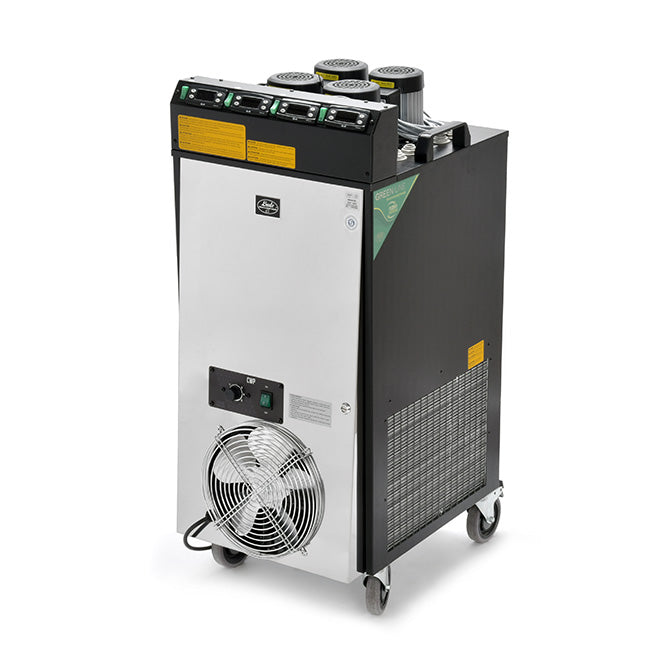

Lindr CWP 300 4X Pump 4X Thermostat – cooler for four fermentation tanks
The Lindr CWP 300 4× Pump 4× Thermostat NEW Green Line is a cooler in the CWP series made for precise control of fermentation and conditioning. It has four NRG 12 circulation pumps, each with its own digital thermostat and a 6-metre sensor. This lets you control the temperature separately in up to four fermentation tanks at the same time, with a combined capacity of up to 1500 litres. The cooler suits microbreweries and advanced homebrewers.
Cooling is based on water cooling with an ice bank, where the ice reservoir gives strong cooling and a stable temperature. Maximum cooling capacity is 200 litres per hour, with a continuous output of 180 litres per hour. The cooler is built from stainless steel for good hygiene, long life and easy cleaning. A drain valve and water level indicator make servicing easier, and sturdy wheels make it easy to move.
As part of the Lindr Green Line series, the CWP 300 uses the refrigerant R-290, which gives up to 20% lower power consumption and higher energy efficiency.
Technical data
- Compressor power: 1 HP (2360 W)
- Max. cooling capacity: 200 l/h (to 0°C / TK 45°C), equivalent to up to 1500 litres for fermentation
- Continuous output: 180 l/h
- Thermal gradient ΔT: 10°C
- Ice bank: 10–20 kg
- Circulation pumps: 4 × NRG 12 (12 m head)
- Recirculation connection: 1/2"
- Digital thermostat: yes (4 pcs, one per circuit), 6 m sensor
- Power consumption: 1380 W
- Current: 6 A
- Voltage: 220–240 V / 50 Hz ~1
- Refrigerant: R-290
- Net weight: 50.5 kg
- Mobility: sturdy wheels
- Construction: stainless steel, drain valve and water level indicator
Technical support for Lindr
Brewshop is the Norwegian distributor of Lindr, and we offer fast and reliable service. We can also help you put together the equipment you need to dispense from KeyKeg, PolyKeg or other kegs. Just get in touch.
Frequently asked questions about the Lindr CWP 300 4X
How many fermentation tanks can the CWP 300 4X cool?
Up to four tanks at the same time, with a combined capacity of up to 1500 litres.
Can each tank have its own temperature?
Yes. Each of the four pumps has its own digital thermostat with a 6-metre sensor, so the temperature is controlled separately for each tank.
What is the difference between maximum and continuous capacity?
Maximum cooling capacity is 200 litres per hour (to 0°C, TK 45°C). In continuous operation, the cooler delivers 180 litres per hour.
Why does temperature control matter during fermentation?
Too high a temperature gives esters and fusel alcohols, while too low a temperature gives slow or incomplete fermentation. With a thermostat per tank, every beer can ferment at the right temperature.
