Description

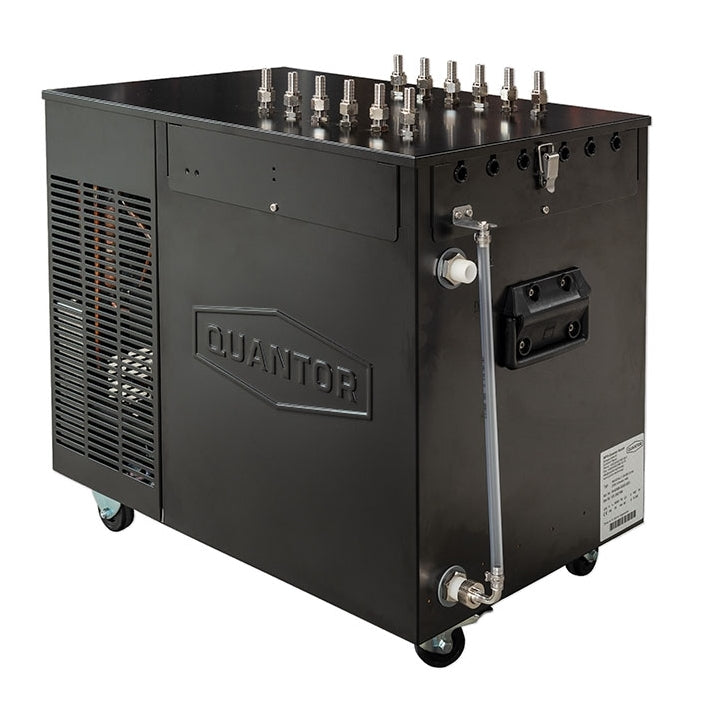

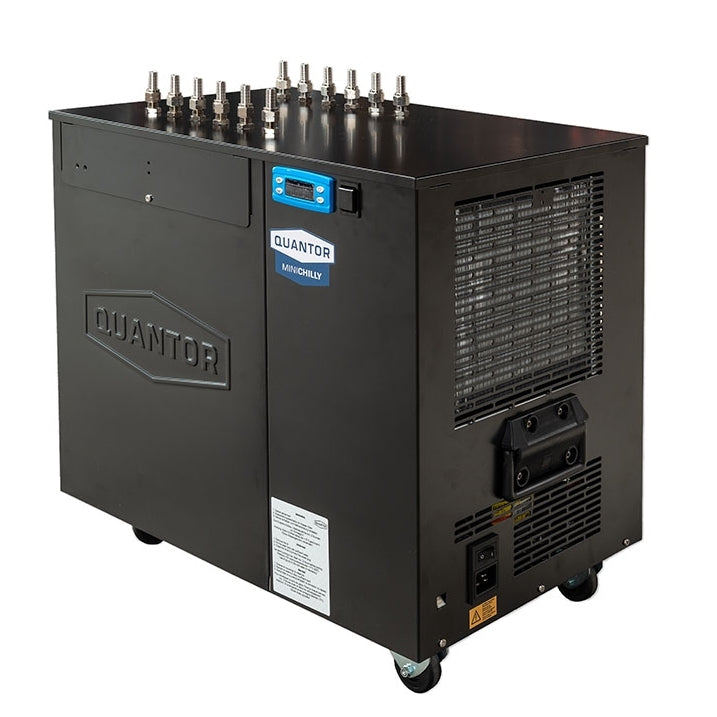

Quantor MiniChilly 05 SB Compatible Black – glycol chiller for up to six tanks
MiniChilly 05 SB Compatible is a chiller for homebrewers and small breweries making beer, cider or wine. It lets you get the most out of tanks from, for example, Brewtools, Speidel and the Grainfather Conical Fermenter. The Black Edition comes with connections for cooling up to six tanks and has an external sight glass that makes it easy to keep an eye on the liquid level.
How it works
A submersible pump, as in Quantor's Fermflex SB Kit or the Temp Control Pump Kit, is lowered into the water bath, which with a glycol mix can be cooled down to -6 °C. The chiller comes with 3/8" hose barbs for connecting up to six submersible pumps, which can run at the same time to cool several tanks.
Cooling capacity: 0.56 kW, enough for up to 2 x 240 L tanks with one 240 L tank on cold crash at any time, or 4 x 120 L tanks.
Technical data
- Cooling capacity: 560 W (3/4 HP)
- Power: 230 V, 50 Hz
- Coolant temperature: down to -6 °C (with 30 % glycol)
- Water tank volume: approx. 27 L
- Refrigerant: R290, 110 grams
- Dimensions (H x W x D): 700 x 370 x 495 mm
- Weight: 36 kg
- Powder-coated stainless steel cabinet
- Made in Germany
The item is too large and heavy to be sent as a standard parcel and is therefore shipped on a pallet.
Frequently asked questions about the Quantor MiniChilly 05 SB Compatible
How many tanks can the MiniChilly 05 SB cool?
The unit has connections for up to six submersible pumps. The capacity covers, for example, 2 x 240 L tanks with one on cold crash, or 4 x 120 L tanks.
What else do I need?
You need one submersible pump with temperature control per tank, such as the Fermflex SB Kit or Temp Control Pump Kit, and glycol for the water bath.
How cold does the coolant get?
With 30 % glycol in the water bath, the coolant can be held down to -6 °C. That leaves room for cold crashing, which is usually done at 0–4 °C.
How is the chiller delivered?
The unit weighs 36 kg and is shipped on a pallet.
