Description

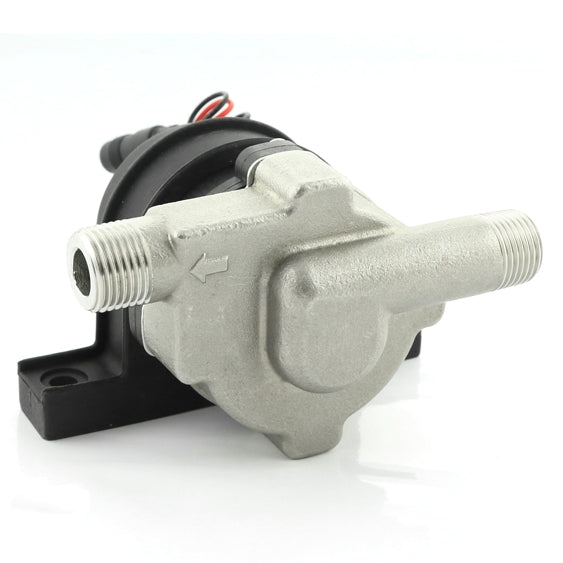

Topsflo TD5 PWM Speed Control
(PWM = Pulse Width Modulation)
The TD5 Beer Brewing Pump is a very quiet but powerful 35W magnetic drive brushless pump of high quality from Topsflo. With a food-grade stainless steel head, and food-grade Xyron PPE plastic material and O-rings that can withstand 150°C, the pump is specially designed to tolerate the high temperatures encountered during beer brewing, and works equally well for recirculation during mashing as for transferring boiling wort with, for example, a counterflow chiller. Even easier to clean in the new version with separate rotor and bearing.
The TD5 PWM has a built-in circuit for speed control and comes with three cables: Red (+), black (-), blue (PWM). A PWM signal of 0-5V, 100-100KHz, controls the speed. The pump only works if the blue cable receives a signal from a speed controller.
- Max temperature: 110°C over long periods, 150°C for shorter periods.
- Head: 4.5 meters
- Flow rate: max 25 liters/min
- Lifespan of 20,000 hours and can withstand 24 hours of constant operation
- Overvoltage protection
- Inlet and outlet have 1/2" threads
- Mounting bracket included
- Power adapter not included with the PWM model.
To choose PWM controller: Speed control by using PWM signal，Frequency 100-100KHz，amplifier 5V，20-100% Linear speed
regulation，0-20% Speed is zero.
