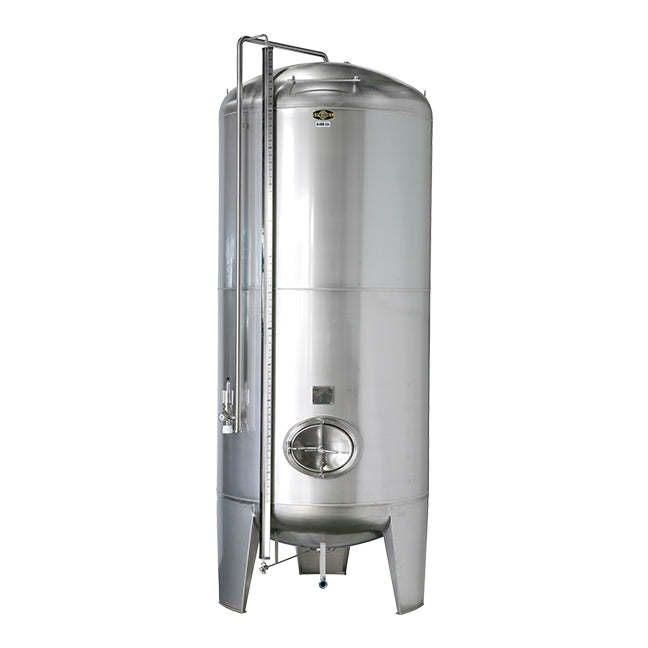

Speidel trykktank FS-MO-3B 2400L - komplett, en stor, vertikal kjøletank i rustfritt stål med sylindrisk karosseri, konisk bunn, Zimmerlin mannhullsluke og påmontert rørsystem fra Speidel, er vist på hvit bakgrunn.
Roll over image to zoom in Click on image to zoom
Speidel trykktank FS-MO-3B 2400L - komplett, en stor, vertikal kjøletank i rustfritt stål med sylindrisk karosseri, konisk bunn, Zimmerlin mannhullsluke og påmontert rørsystem fra Speidel, er vist på hvit bakgrunn.

Speidel Pressure Tank FS-MO-3B 2400L - complete (Order Item)

SpeidelSKU: 7339863933026

2400 liter pressure tank from Speidel. Approved for pressure up to 3 bar. Supplied complete with butterfly valves, overpressure valve, cooling jacket, manhole, CIP cleaning, thermowell and thermometer.

Description

Order item, shipped directly from the manufacturer.

Completely equipped with:

  • Safety valve for 3.0 bar working pressure
  • Laser welded double jackets for cooling with two connections G1“ (male thread)
  • Manhole Zimmerlin 340 x 440 mm LW, door with swiveling handle and toggle nut
  • CO2-Connection G3⁄4“ welded on to cleaning pipe, incl. CO2-valve
  • Type plate
  • Bung pressure stat (Pico) G3⁄4”
  • Cleaning pipe DN 40, with spray head, perforation 360° with spay head holder, including cleaning pipe NW 40 DIN 11851 incl. disk valve NW 40
  • Welded gland NW 10 DIN 11851 incl. sampling valve NW 10
  • Welded gland NW 10 DIN 11851 incl. welded sleeve and thermometer L 125 mm
  • Racking outlet NW 40 DIN 11851 incl. disk valve NW 40
  • Bottom outlet NW 40 DIN 11851 incl. disk valve NW 40
  • On welded-on box legs incl. height adjustments
  • Tank with declaration of conformity according to pressure equipment directive 2014/68/EU

Dimensions:

  • Diameter: 120 cm
  • Height: 301 cm
