Description

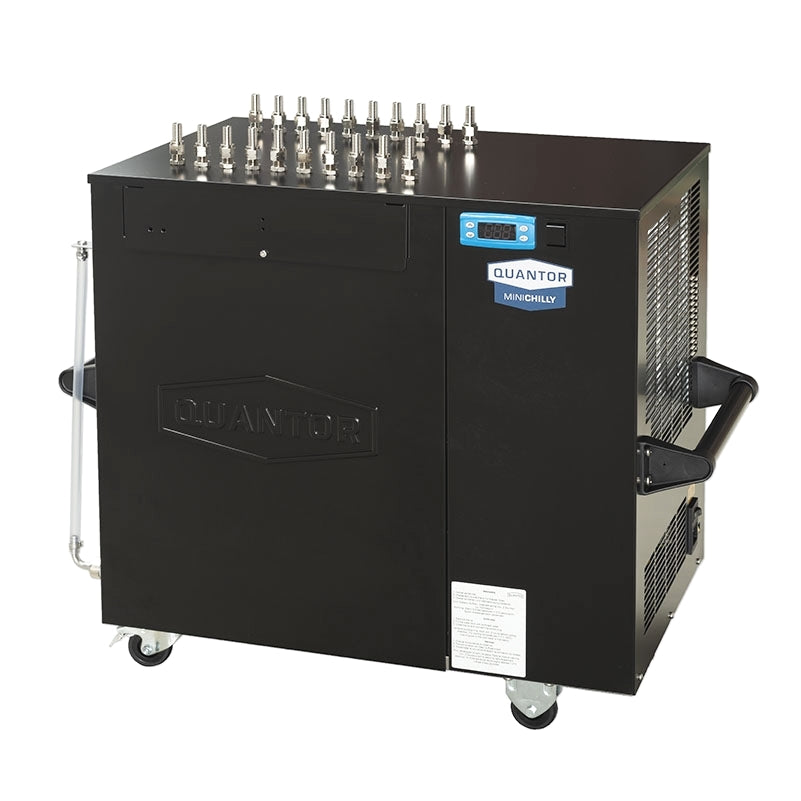

Glycol Chiller - Quantor MiniChilly 17 SB Compatible Black
The MiniChilly 17 SB Compatible is a modified MiniChilly 17, and is the perfect cooling unit for cooling tanks for advanced homebrewers and small breweries. A submersible pump, as found in, for example, Quantor's Fermflex SB Kit or Temp Control Pump Kit, is submerged in the water bath, which, with a glycol mixture, can cool down to -6°C. The chiller, adapted for submersible pumps, offers small breweries a more affordable solution and greater flexibility than conventional glycol chillers with a fixed manifold piping system for distributing coolant to each tank.
The MiniChilly 17 SB Compatible Black Edition comes with connections for cooling up to 10 tanks with submersible pumps, as well as an external sight glass for easy observation of the liquid level.
Cooling capacity: 1.7kW (up to, for example, 5 x 240L tanks, with one 240L tank cold crashing at any given time, or 10 x 120L tanks, with two tanks cold crashing...)
Details:
- Cooling capacity: 1.7kW (2.21HP)
- Power: 230V, 50 Hz
- Coolant temperature: Down to -6°C (with 30% glycol)
- Water tank volume: approx. 48L
- Refrigerant: R290
- Dimensions (H x W x D): 700 x 370 x 495 mm
- Stainless steel cabinet, powder-coated
- Made in Germany
The item is too large/heavy to be sent as a service package and is therefore shipped on a pallet.
