Description

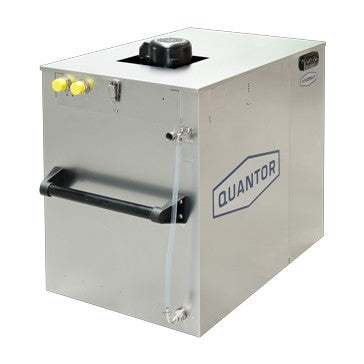

Quantor MiniChilly 17 Glycol Chiller
Glycol chiller with built-in pump, with a cooling capacity of 0.56kW. This is enough power for temperature control for up to 5 x 240L tanks (or equivalent), with one 240L tank on cold crash at all times.
Using a glycol chiller with built-in pump
To use a chiller with a built-in pump, you need a temperature controller and solenoid valve per tank. The valve will open/close for coolant as needed and as signaled by the temperature controller. You also need to set up hoses or pipes that include a bypass loop, which ensures that coolant always flows back to the chiller if the solenoid valve(s) are closed. Without a bypass, the pump will be damaged, as it will always be working.
The product is too large/heavy to be sent as a regular package and must therefore be sent on a pallet.
CHARACTERISTICS
- Cooling water temperature range from -6°C to +30°C (from 21,2°F to 86°F)
- Ambient temperatures from from +10°C to +32°C (from 50°F to 89,6°F)
- Ice-bank at 0°C water temperature
- Stainless steel coil for direct product cooling available as option
APPLICATIONS
- Passive cooling of fermentation and storage tanks
- Cooling of must and wine for pre-clearing and cristal stabilisation
- Cooling of rooms and storage halls - with additional fan coils
- With stainless steel coil (option): direct cooling of liquids (active cooling)
TECHNICAL DETAILS
- Available in three models: MiniChilly 05 / MiniChilly 09 / MiniChilly 17
- Cooling capacity: 0,5 - 1,7 kW (0,67 - 2,21 HP)
- Refrigerant: R290
- Electric connection: 230V/1Ph/50/60Hz
- Water inlet / outlet: 3/4" AG
DESCRIPTION
The compact cooling unit MiniChilly, made of stainless steel, is an ideal solution for micro-breweries, hobby brewers and smaller wineries who only need cooling for their applications.
The MiniChilly is available in three sizes, with cooling capacities of 0,5 to 1,7 kW (0,67 to 2,21 HP). At 0°C (32°F) water temperature an ice-bank will be built around the tubes which provides an additional, stored cooling capacity. When used for flash-cooling, it boosts the capacity of the unit, giving a constant cooling temperature over a longer time period. An additional stainless steel coil for direct cooling of liquids can be
integrated as an option, even afterwards. The MiniChilly is able to cool water down to -6°C using glycol.
