1.5" Tri-Clamp x 1/2" NPT (male)

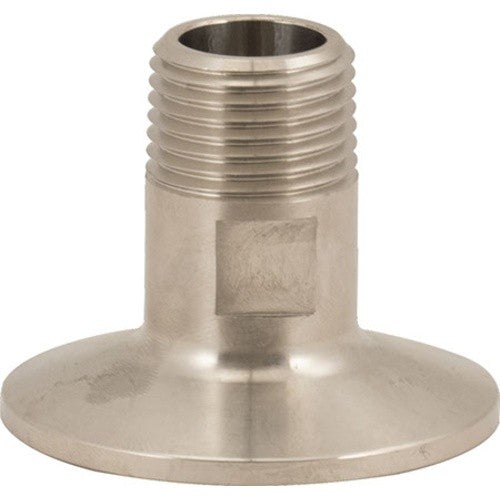

1.5" Tri-Clamp x 1/2" NPT (male) – stainless steel adapter

Adapter from 1.5" Tri-Clamp to 1/2" NPT male thread, made from 304 stainless steel. Use it to connect equipment with a 1/2" NPT female thread, such as ball valves, hose barbs or sensors, to a 1.5" Tri-Clamp port on a kettle, fermenter or pipe.

Technical data

• Connection 1: 1.5" Tri-Clamp
• Connection 2: 1/2" NPT male thread
• Material: 304 stainless steel
• Manufacturer: Brumetal

Frequently asked questions about the 1.5" Tri-Clamp x 1/2" NPT

What do I need to fit the adapter?

A Tri-Clamp joint consists of two ferrules, a gasket and a Tri-Clamp clamp. For the 1.5" side you therefore need a 1.5" gasket and a 1.5" Tri-Clamp clamp.

What is an NPT thread?

NPT is a tapered American pipe thread. It seals as it is tightened, and thread tape is commonly used to get a tight joint.

What material is the adapter made of?

304 stainless steel, which withstands common cleaners and sanitizers for brewing equipment.
